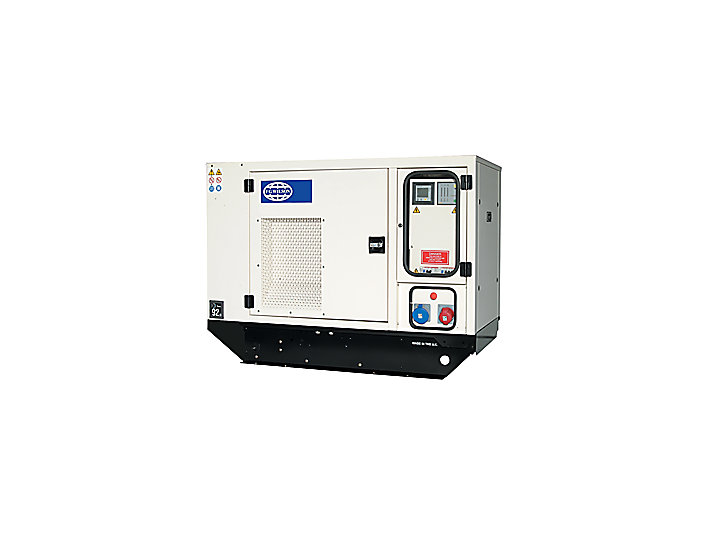

XD20P4

Full Specifications

Engine Specifications

Benefits & Features

Fuel / Emissions Strategy

EUIIIa Emissions Compliant

Generator Set

1. EUIIIa Emissions Compliant
2. Complete System Designed And Built At ISO 9001 Certified Facility
3. Factory Tested To Design Specifications At Full Load Conditions

Engine

1. Governor, Mechanical
2. Electrical System, 12V DC
3. Cartridge Type Filters
4. Fuel/Water Separator
5. Battery, Rack And Cables

Alternator

1. Insulation System, Class H
2. Screen Protected And Drip-Proof, Self Exciting, Self-Regulating With Fully Interconnected Damper Windings, IC06 Cooling System And Sealed-For-Life Bearings
3. Electrical Design In Accordance With BS5000 Part 99, IEC60034-1, EN61000-6, NEMA MG-1.22

Control System

1. Manual/Autostart Control Panel
2. Vibration Isolated, NEMA 1 Enclosure With Lockable Hinged Door
3. DC And AC Wiring Harnesses

Multi-Voltage System

1. Switchable Voltage Output:
   1. 480/277V 3 phase
   2. 208/120V 3 phase
   3. 240/120V 1 phase
2. Convenience Receptacles
3. Hinged Door Over Main Connectors
4. NEMA 1 Steel Enclosure, Vibration Isolated

Circuit Breaker

Dual, 3-Pole With Solid Neutral, UL/CSA Listed

Mounting Arrangement

1. Heavy-Duty Fabricated Steel Base Raised For Forklift Access
2. Anti-Vibration Mounting Pads
3. Complete OSHA Guarding
4. Three-Way Valves To Allow Connection Of Auxiliary Fuel Tank
5. UL Listed Single Walled Fuel Tank Base With 24 Hour Minimum Fuel Supply.
6. Containment Area For Oil, Coolant And Fuel Spill.

Sound Attenuated Enclosure

1. Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
2. Highly Corrosion Resistant Construction

Body made from sheet steel components pretreated with zinc phosphate prior to polyester powder coating at 200° C (392° F)

Equipment Finish

1. All Electroplated Hardware
2. Anti-Corrosive Protection Prior To Painting
3. High Gloss Polyurethane Paint For Durability And Scuff Resistance

Documentation

1. Operation And Maintenance Manuals Provided
2. Wiring Diagrams Included
3. WARRANTY

All equipment carries full manufacturers warranty

Automatic Voltage Regulator

Voltage within the limits of +/- 0.5% for 3 Phase and +/- 1% for Single Phase operation at steady state from no load to full load

Quality Standards

IEC60034, EN61000-6, NEMA MG-1.22

Optional Equipment

Engine

• Fuel tank – UL listed double wall tank base with 24 hour minimum supply
• Battery charger
• Electronic Governor required for operation at 60 Hz

Alternator

• Anti-Condensation Heater

Cooling System

• Engine Water heaters

Miscellaneous Accessories

• Additional operator’s manual pack

Standard Equipment

24 Hour Fuel Tank

• Low Fuel Level Shutdown
